Composition

Screen: Polycarbonate 500µm.
Frame: Linear Polyethylene (soft and flexible touch).
Elastic: Polyester and rubber.

Manufacturer

Heliotextil Etiquetas e Passamanarias S.A.
Zona Industrial nº1
Rua dos Açores nº 158
3700-018 S. João da Madeira
Portugal

Manufacturing Compliance

Category I Protection Screens, within the scope of Regulation (EU) 2016/425, according to harmonized standards EN166: 2001 (6.1; 6.2; 6.3; 7.1.1; 7.2.4; 9 and 10) and EN 168 (12; 18).

The 4FaceProtech model HTX screen has been tested by independent laboratories.

Declaration CE available.

3 HELIOTEXTIL - Screen with good colour recognition manufactured by Heliotextil Etiquetas e Passamanarias, Lda.

HELIOTEXTIL EN166 3 - Screen with splashing protection manufactured by Heliotextil Etiquetas e Passamanarias, Lda.

Heliotextil Etiquetas e Passamanarias S.A., a company certified according to the quality standard: NP EN ISO 9001.

Reports

1.
Remove protective film on both sides.

2.
Place the screen on the holder:
4 support pins facing upwards (A)).
Start at the corner (B) until the end of the holder (C).
Gently lift the last pin for a better fit (D).

3.
Attach the elastic to the holder, and adjust it to the desired size in the hole.

4.
The elastic is considered well placed when properly fixed on both sides of the holder.

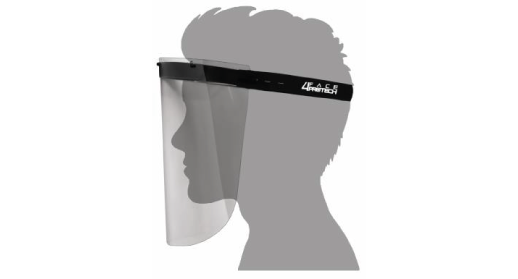

Use: The 4FaceProtech face shield must be assembled according to the instructions and used for face protection with the elastic properly adjusted as shown in the figure on the right..

Cleaning and maintenance: washable with mild soap, water and a non-abrasive cloth.

Storage: store in a dry place, protected from sunlight.
